Oral Syringes
Comar Plastic Oral Syringes – Unique Two-Piece Design for Patient Safety
The Comar Oral Syringe is a two-piece dispenser that uses a patented wiper design, instead of a rubber grommet, to form a complete seal between the plunger and the barrel. Removing those small siliconized rubber parts from the tip of the syringe greatly reduces the risk of choking and project contamination. Comar oral syringes are ideally suited for safely dispensing medication or applying topical applications.
In April 2016, the FDA released its Guidance for Industry on “Safety Considerations for Product Design to Minimize Medication Errors.” The document refers to an estimated 7,000 deaths occurring each year as a result of medication errors. Medications now exceed household products, such as cleaning fluids, as the primary cause of pediatric poisoning. To develop preventive strategies, the U.S. Centers for Disease Control and Prevention (CDC) formed the PROTECT Initiative bringing healthcare professionals together with leading over-the-counter medication and packaging manufacturers. Comar, an original member of the PROTECT Initiative, developed the DoseGuard® system in response. Comar’s oral syringes combined with the new DoseGuard, offer maximum liquid dispensing safety.
We manufacture stock and made-to-order Oral Syringes, Valved Bottle Adapter Systems, Oral Syringe Bottle Adapters (Orifice Reducers), and Oral Syringe Tip Caps.

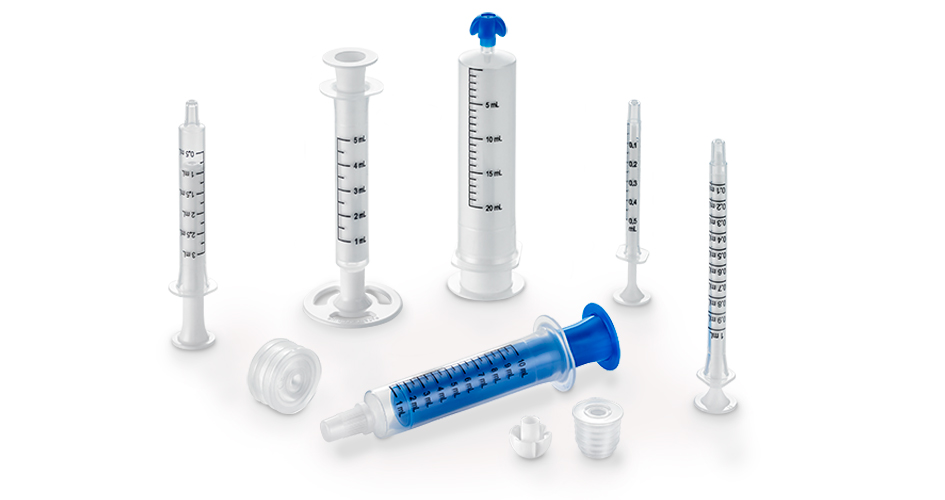

Premium Plastic Oral Syringes
Tested, approved, and used by major pharmaceutical companies, the Comar Oral Syringe has a unique wiper design that achieves quality standards unmatched in the industry.
Features and Options:
- 0.5 mL, 1 mL, 3 mL, 5 mL, 10 mL, and 20 mL
- Available with short and long tips
- Medical grade PE and clarified PP construction – silicone and latex free
- Stock printed syringes feature simplified upright calibration markings
- PCD (Patient Care Dispenser) syringes feature inverted finer calibration markings
- 100% visual inspection of calibration lines to ensure accuracy
- Pressure testing during assembly to ensure functionality
- Function, seal integrity, and print quality are maintained throughout multiple dishwashing cycles and over an extended shelf life
Customizations:
- Tips can be modified for compatibility with various adapters and fittings
- Resin Colors:
- Plunger colors
- Stock: White
- Made-to-Order: Yellow, Orange, Red, Purple, Blue, Light Green, Dark Green, and Turquoise
- Custom colors available
- Barrel colors
- Stock: Clear
- Made-to-Order: Amber
- Custom colors available
- Plunger colors
- UV amber barrels meet USP <671> for light transmission and are great for light-sensitive liquids, creams, and gels
- 360°, 2-color custom printing for logos and unique calibration lines
- CE mark for the European market available as a print option
- Custom wrapping options:
- bag/pouch
- shrink wrap
- wrapped together with a press-in bottle adapter
Oral Syringe Accessories
Press-In Bottle Adapters (Orifice Reducers)
Press-in bottle adapters allow for increased dosing accuracy when filling oral syringes. Available in various sizes, they fit securely in any bottle with a corresponding opening size. The adapters allow a user to easily draw liquid with an oral syringe, ensuring accurate dosing while avoiding spills; they fit flush with the bottle opening so that the original cap can be placed on the bottle.
Features & Options
- Vented or Non-Vented: Vented adapters can be used where large doses coupled with low head-space may create a vacuum inside the container. The vent allows air into the bottle as a dose is extracted.
- Sizes: 20 mm, 24 mm, 28 mm, and 33 mm
- Easy, spill-free prefilling of oral syringes
- Innovative design works with plastic bottles
- Low profile allows use of standard closure to seal bottle
- CE mark for European markets available upon request
- Material: LDPE (low-density polyethylene)
DoseGuard® Valved Bottle Adapters
Comar designed the DoseGuard® to improve on traditional bottle adapters that simply act as open-flow restrictors. Our design employs a passive valve to provide closed flow control thereby keeping liquid medications child-safe. The DoseGuard® has been recognized for its proven ability to protect children from an accidental overdose of liquid medications and is compatible with standard containers and oral syringes. The improved flexibility of DoseGuard® allows it to more easily integrate with packaging lines, and gives manufacturers of liquid over-the-counter and prescription medications an additional means to comply with the U.S. Centers for Disease Control and Prevention (CDC) PROTECT Initiative.
Features & Options
- Sizes: 20 mm and 28 mm
- Works with standard plastic bottles
- Securely connects to container finish are rests on top of the finish, this low profile allows for use of a standard closure
- Patented valve design remains closed until the tip of the oral syringe is inserted into the valve
- Valve opening is customizable to specific product viscosity and is easily adaptable to an open-hole flow restrictor for use with products requiring dosage cups
- Single material one-piece construction reduces contamination risks
- Material: LDPE (low-density polyethylene)
Oral Syringe Tip Caps and Stands
- Standard Tip Cap snaps on and seals the syringe tip
- Self-righting tip cap version is available to keep the cap clean
- Standard colors: White, Blue, and Natural
Custom Dispensing Solutions
Looking for a custom dispensing solution? Our highly experienced Innovation and Design Team will work with your unique requirements to design, develop, and manufacture a solution that meets your specific needs!
